SUC208D1 Bearing | SUC 208 stainless Steel insert bearing Metric

HOJE BEARING CO.,LIMITED
Contact Now

SUC208D1 Bearing | SUC 208 stainless Steel insert bearing Metric

Brand Name : NTN

Model Number : SUC208

Certification : ISO : 9001

Place of Origin : CHINA

MOQ : 1

Price : US$ 0.1-50 /pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000/pcs/month

Delivery Time : 3-15 days

Packaging Details : Single box

Inside diameter : 40 MM

Outside diameter : 80 MM

Thickness/width : 49.2 MM

Basic dynamic load rating : 24.8kn

Basic static load rating : 16kN

Weight : 0.65kg

Category : Stainless steel insert bearings

Contact Now



SUC208D1 Bearing | SUC 208 Stainless Steel insert bearing Metric

The SUC208D1 Bearing | SUC 208 Stainless Steel insert bearing Metric not only have the characteristics of the ordinary bearings: Low vibration, low noise, high precision rotating, lower friction torque and high speed running but also have its special usage function.

The range of application is wide:

It is an acid-proof and alkali-proof
It can work in corrosion medium such as sea water, river aqua, distilled water, sparse nitric acid, maritime climate, steam and so on
It can work in the high or low temperature environment

SUC208, SUC Stainless Steel Bearing Inserts :

Balls & Rings - 440 Stainless Steel
Seal - Silicone Rubber
Seal Frame & Slinger - 302 Stainless Steel
Retainer - 302 Stainless Steel
Set Screws - 304 Stainless Steel
Locking Collar (SNA only) - 304 Stainless Steel
Lubrication - H-1 Food Grade Grease



The details of SUC208D1 Bearing | SUC 208 Stainless Steel insert bearing Metric :

d - Bore Dia. of Bearing

40 mm

D - Dimension

3.1496 Inch80.0 mm

Bi - Dimension

1.9370 Inch49.2 mm

Be - Dimension

0.8268 Inch21.0 mm

N - Dimension

0.7480 Inch19.0 mm

M - Dimension

1.1890 Inch30.2 mm

G - Dimension

0.3150 Inch8.0 mm

Ds - Dimension

5/16-24UNF Inch

H - Dimension

0.7205 Inch18.3 mm

K - Dimension

2.3740 Inch60.3 mm

Basic Load Rating

5.660 lb

Basic Static Load Rating

3.300 lb

Weight

1.41 lb

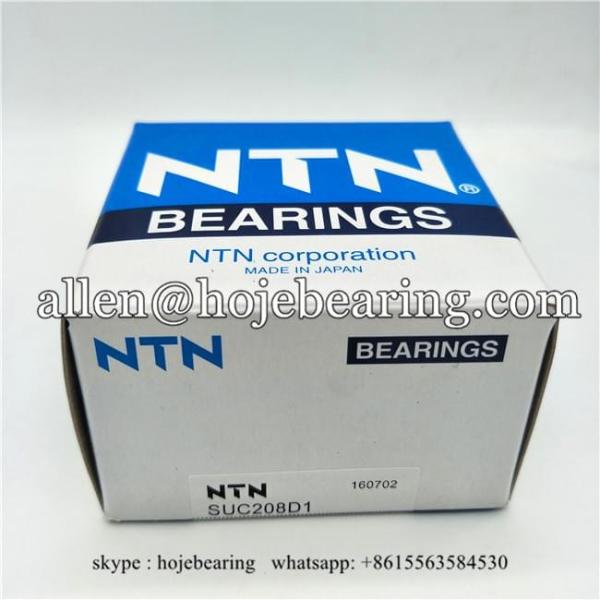

The photos of SUC208D1 Bearing | SUC 208 Stainless Steel insert bearing Metric :


SUC208D1 Bearing | SUC 208 stainless Steel insert bearing MetricBelow is the picturer of SUC208D1 Bearing | SUC 208 Stainless Steel insert bearing Metric :

SUC208D1 Bearing | SUC 208 stainless Steel insert bearing Metric




Buy cheap SUC208D1 Bearing | SUC 208 stainless Steel insert bearing Metric product

SUC208D1 Bearing | SUC 208 stainless Steel insert bearing Metric Images
